RO-HD60,hot water disinfections RO system

                                 RO-HD60,hot water disinfections RO system

RO water product 1,800 LPH,at 25℃

For 30 beds dialysis machine ,max. for 40 beds applications

Suitable for raw water quality TDS1,000 mg/L

RO pre-filter RO purification Unit + hot water disinfections tank

  RO-HD60 RO system specifications

Items Model

specifications

     Raw water booster pumps CM3-4x 2     2 Stainless steel pumps will alternative change operation
     Multi-medias filter: SAFM-30     FRP Tank-1665,medias 120Liters,auto-back wash control valve
     Water softener: RF-30     FRP Tank-1665,medias 120Liters,auto-regeneration control valve
     Carbon filter : SAFC-30     FRP Tank-1665,medias 120Liters,auto-back wash control valve
     5 μm cartridge filter ST-F20    5μm,20" cartridge x 5 pieces,stainless steel housing
     RO purification Unit

RO-HD60

1. RO membrane : TFC-4040 x 6 pieces

2. RO pump: CRI3-19Stainless steel pump

3. Vessel : Stainless steel #304 x 6 pieces

4. RO water product 1,800 LPHat 25℃

5. Recover rate  50%

    Hot water disinfections device PHD-200

1. Hot water tank made of stainless steel#304

2. Water heating up heater: 9 kW,220/380V

3. Temp. digital display meter with temp. control and pre-setting mode

4. Water temp. 85℃ for disinfections

5. Hot water tank with level s/w,MLHL

6. Temp. on line monitor and control  for disinfections

7. Circulation pump - stainless steel #304

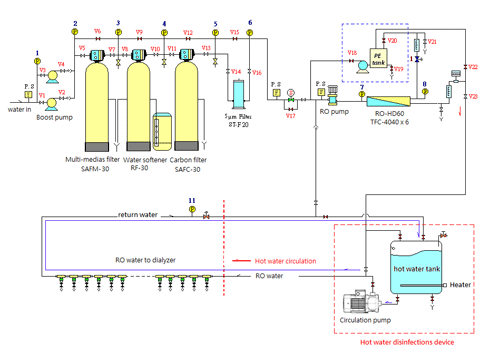

            RO-HD60,Hot water disinfections flow chart

RO-HD60,RO system function descriptions

  No. of dialyzer

30~40 beds of dialysis machine

   1. RO water product    RO product  1,800 LPHat 25℃ , recovery rate ≧  50 %
   2. RO water quality

RO membrane TFC- 4040 , high permeate  , high rejection rate ≧ 99% ( single element )

RO water quality comply with AAMI  standard

   3. Ro water supply    RO water directed supply to dialyzer with constant pressure and flow rate
   4. Piping material    RO system with SCH-80 PVC pipes connect,and pipe line to dialyzer with CPVC or PEX pipes
   5. Power control panel    PLC control panel or optional of POD for monitor alarm and remote control

6. RO system disinfections

Hot water disinfections mode for:

   1. RO membrane disinfections mode  2. Pipe line disinfections mode

7. 2-pass RO system

Tap water TDS 1,000 mg / L,  recommend to choose 2-pass RO system

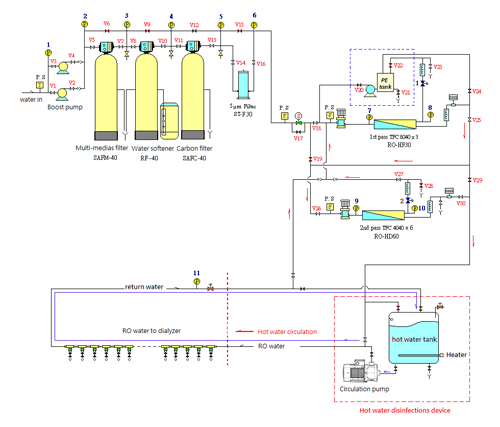

 RO-HD60,2-pass Hot water disinfections flow chart
