Wall mounting type RS -W series



                                Wall mounting type RS -W series

                                                Models : RS-10W~40W ( for 1~4 persons use )

( Auto water faucet,auto brushsoap drug dispenser )

Outline dimension and functions descriptions

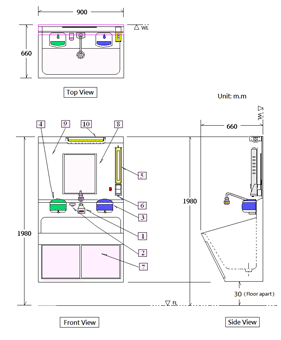

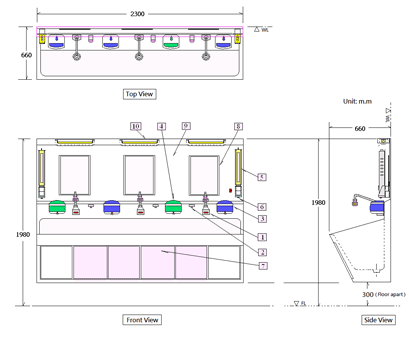

RS-10W scrub sink RS-30 W scrub sink

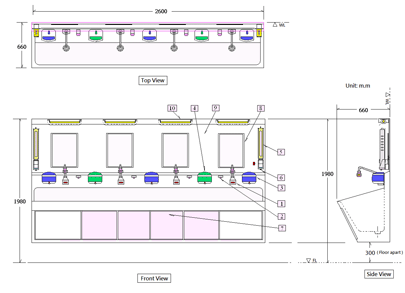

RS-20 W scrub sink RS-40 W scrub sink



RS-W series scrub sinks specifications

No.

  Items

          Specifications

00

Sink body

Stainless steel SUS-304 1.2 tpolished #100

01

Sink frame

Stainless steel SUS-304 1.2 tpolished #100

 1

Faucet

Goose faucet with spray function

 2

Faucet switch

Separate infrared control by PLC

 3

Soap dispenser

Infrared controlvolume:800ml1~10 drops adjustable

 4

Disinfectant dispenser

Infrared controlvolume:800ml1~10 drops adjustable

 5

Infrared brush box

Stainless steel SUS-304 1.2twith view window

 6

Infrared brush sensor

Access to get brush

 7

Maintenance door

Stainless steel SUS-304 1.2 t

 8

Mirror

Size: 35 x 45 cm x 3t

 9

Back plate

Stainless steel SUS-304 1.2 t

10

Lamp

10 W

11

Built in device

1. Power control boxwith current leakage breaker





2. Filter: 5μm x 10”





3. Brush x 24





4. Stainless steel piping and accessories





5. Sink drainage port: 40A





6. Lamp on/off switch
