Scrub Station Installations





Scrub Station Installations

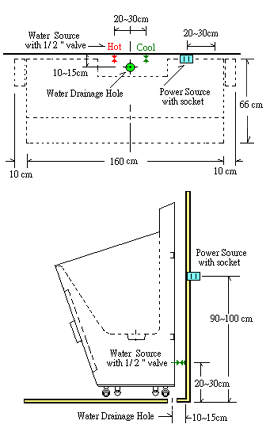

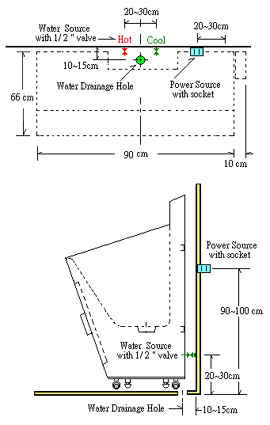

RS -10 ( 1- person use ) RS -20 ( 2 - person use )

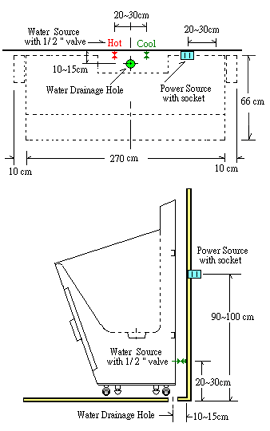

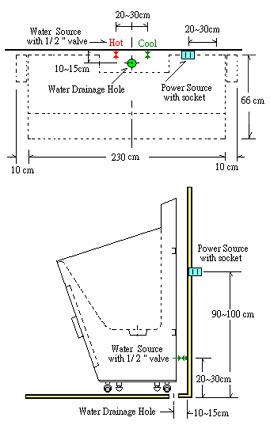

RS - 30 ( 3 - person use ) RS - 40 ( 4 - person use )








    1. Water Source

          1. On the wall  height  around : 20~30cm

          2. If  2 water source ( Hot ) and ( Cool ) , keep : 20~30cm  apart

          3.  Water outlet of  tap water  should fit with a 1/ 2 " valve

    2. Power Source

          1. On the wall height around :  90~100cm

          2. Closed to right hand of scrub sink around :  20~30cm

          3. It should be of single phase 220V, 50/ 60Hz  power supply

          4. If scrub sink with heaters , the power capacities as below:

              RS -10 : 3 kW,  RS -20 : 6 kW,  RS -30 : 9 kW,  RS -40 : 12kW

    3. Drainage

          1. On the floor , at the central of sink apart from the wall : 10~15cm

          2. The floor drain hole  should bigger than : 2

  4. Mounting

      Space required

          1.  RS -10   : Width - 100, Deep - 70, Height -210  (cm )- Min.

          2.  RS -20  : Width - 180, Deep - 70, Height -210  (cm )- Min.

          3.  RS -30 : Width - 250, Deep - 70, Height -210  (cm )- Min.

          4.  RS -40  : Width - 290, Deep - 70, Height -210  (cm )- Min.
