Automatic type RS-FP series



                                   Automatic type RS-FP series

                                                       Models : RS-10FP~40FP ( for 1~4 persons use )

       ( Foot switch faucet feeder pump for soap dispenser )

      Outline dimension and function descriptions

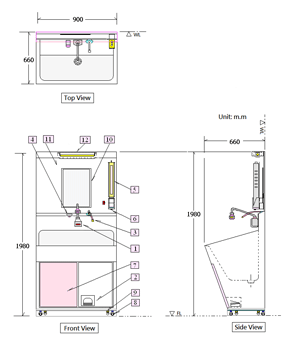

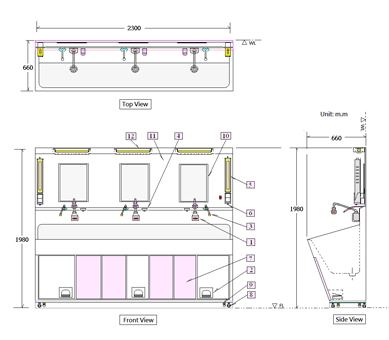

RS-10 FP scrub sink RS-30FP scrub sink

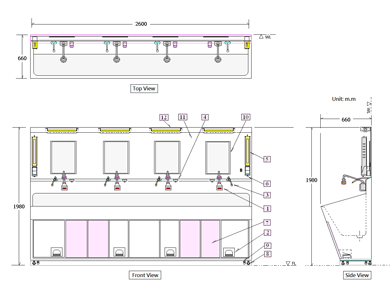

RS-20FP scrub sink RS-40FP  scrub sink



RS-A series scrub sinks specifications

No.

  Items

          Specifications

00

Sink body

Stainless steel SUS-304 1.2 tpolished #100

01

Sink frame

Stainless steel SUS-304 1.2 tpolished #100

 1

Faucet

Goose faucet with spray function

 2

Foot switch

Foot switch for faucet control

 3

Soap faucet

Stainless steel faucet

 4

Infrared sensor

Soap faucet controlvolume adjustable

 5

Brush box

Stainless steel SUS-304 1.2 twith view window

 6

Infrared brush sensor

Access to get brush

 7

Maintenance door

Stainless steel SUS-304 1.2 t

 8

Moving wheel

4 moving wheel with break pedal

 9

Stand leg

4 stands with leg for horizontal adjusted

10

Mirror

Size: 35 x 45 cm x 3t

11

Back plate

Stainless steel SUS-304 1.2 t

12

Lamp

10 W

13

Built in device

1. Power control boxwith current leakage breaker





2. Filter: 5μm x 10”





3. Brush x 24





4. Stainless steel piping and accessories





5. Sink drainage port: 40A





6. Lamp on/off switch
