Automatic type RS-FA series



                                  Automatic type RS-FA series

                                                            Models : RS-10~40 ( for 1~4 persons use )

( Foot switch water faucet,auto brushsoap drug dispenser )

Outline dimension and function descriptions

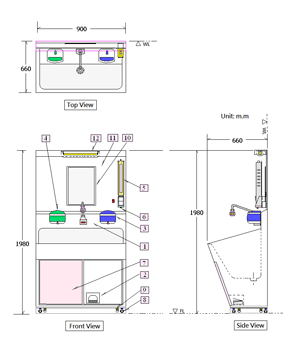

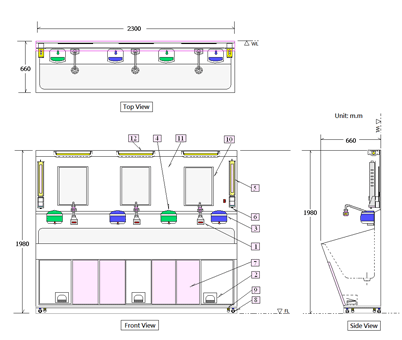

RS-10 FA scrub sink RS-30FA scrub sink

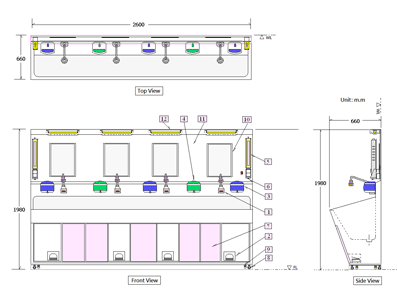

RS-20FA scrub sink RS-40FA  scrub sink

RS-A series scrub sinks specifications

No.

  Items

          Specifications

00

Sink body

Stainless steel SUS-304 1.2 tpolished #100

01

Sink frame

Stainless steel SUS-304 1.2 tpolished #100

 1

Faucet

Goose faucet with spray function

 2

Foot switch

foot switch for faucet water control

 3

Soap dispenser

Infrared controlvolume:800ml1~10 drops adjustable

 4

Disinfectant dispenser

Infrared controlvolume:800ml1~10 drops adjustable

 5

Infrared brush box

Stainless steel SUS-304 1.2twith view window

 6

Infrared brush sensor

Access to get brush

 7

Maintenance door

Stainless steel SUS-304 1.2 t

 8

Moving wheel

4 moving wheel with break pedal

 9

Stand leg

4 stands with leg for horizontal adjusted

10

Mirror

Size: 35 x 45 cm x 3t

11

Back plate

Stainless steel SUS-304 1.2 t

12

Lamp

10 W

13

Built in device

1. Power control boxwith current leakage breaker





2. Filter: 5μm x 10”





3. Brush x 24





4. Stainless steel piping and accessories





5. Sink drainage port: 40A





6. Lamp on/off switch
