大型不鏽鋼過濾器

不鏽鋼過濾器

                                                            Single Cylinder with multi-cartridges

  *  High flow rate up to 140 GPM

  *  All stainless steel made with drain on dirty side

     *  Special design end cup for easy install and maintenance

      *  Accepts standard cartridges from 20 " to 40 " for 5 and 7 pieces  in a housing





 5 μm濾芯 x 20 "~40 " x 5支裝

5 μm濾芯 x 20 "~40 " x 7支裝

規  格  說  明

Models

No. of cartridges

Dimension ( D x H )

Flow Rate

Pipe size( inch )

Max. Pressure

ST - F 20

20 " x 5

8 " x 30 "

50 GPM

1 ~ 1.5 "

125  PSI

ST - F 30

30 " x 5

8 " x 40 "

75GPM

1 ~ 1.5 "

125  PSI

ST - F 40

40 " x 5

8 " x 50 "

100 GPM

1.5 ~ 2.0 "

125  PSI

** 以上為20 "~40 " x 5支裝

ST - F 20

20 " x 7

10 " x 30 "

70 GPM

1 ~ 1.5 "

125  PSI

ST - F 30

30 " x 7

10" x 40 "

105GPM

1 ~ 1.5 "

125  PSI

ST - F 40

40 " x 7

10 " x 50 "

140 GPM

1.5 ~ 2.0 "

125  PSI

** 以上為20 "~40 " x 7支裝

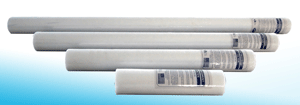

5 μm濾芯 : 10 "~ 40 "
